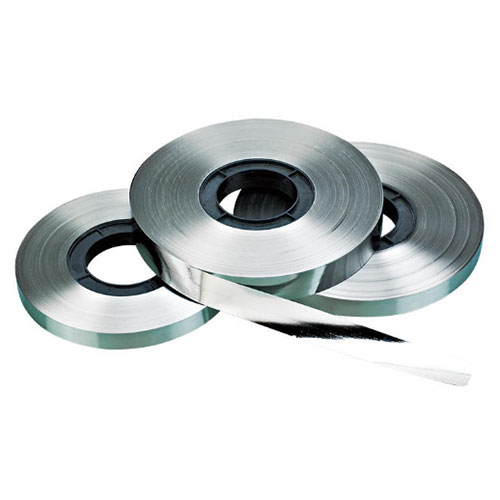

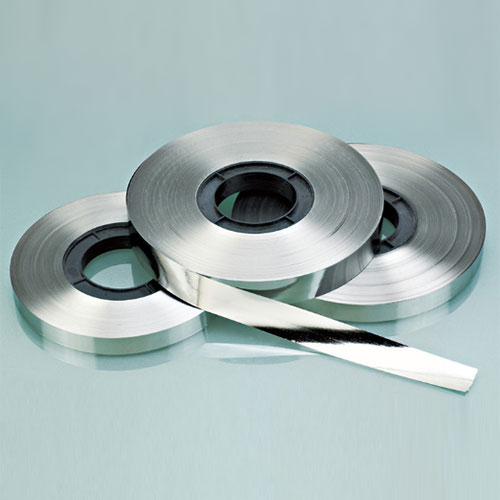

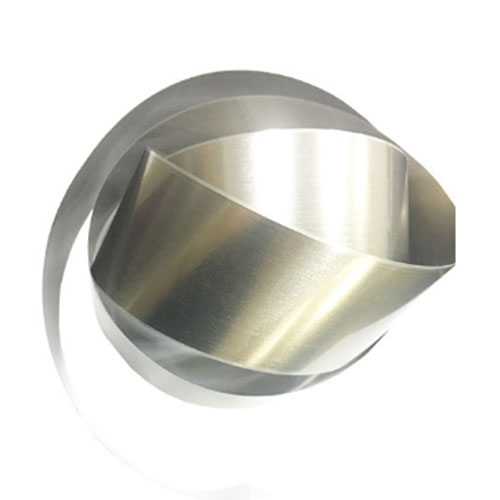

Amorphous Ribbon

Amorphous alloy is a new soft magnetic material. It is produced through the advanced technology of rapid solidification of molten metal at a cooling rale of about a million ℃/sec. During this process the metal is rapidly quenched as a form of ribbon with 15-35 μm thickness, and the micro-structure of the alloy is the amorphous due to the high quenching rate.

Iron-based amorphous ribbon has many advantages, such as high permeability, high saturate induction, high clectrical resistivity, high density, low core loss and good stability. It can replace the materials of silicon steel, permalloy and ferrite. It is widely used in electronics products that high accuracy and good stability are the most required.

product details

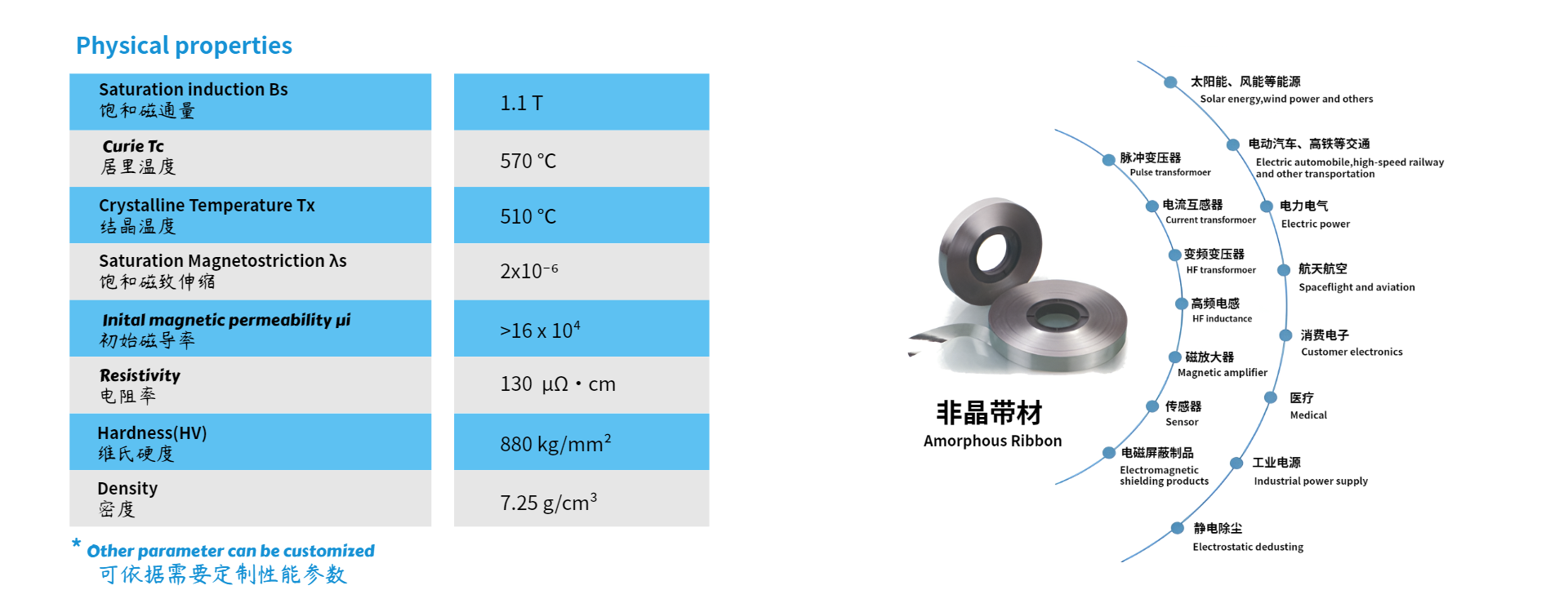

Parameter details
